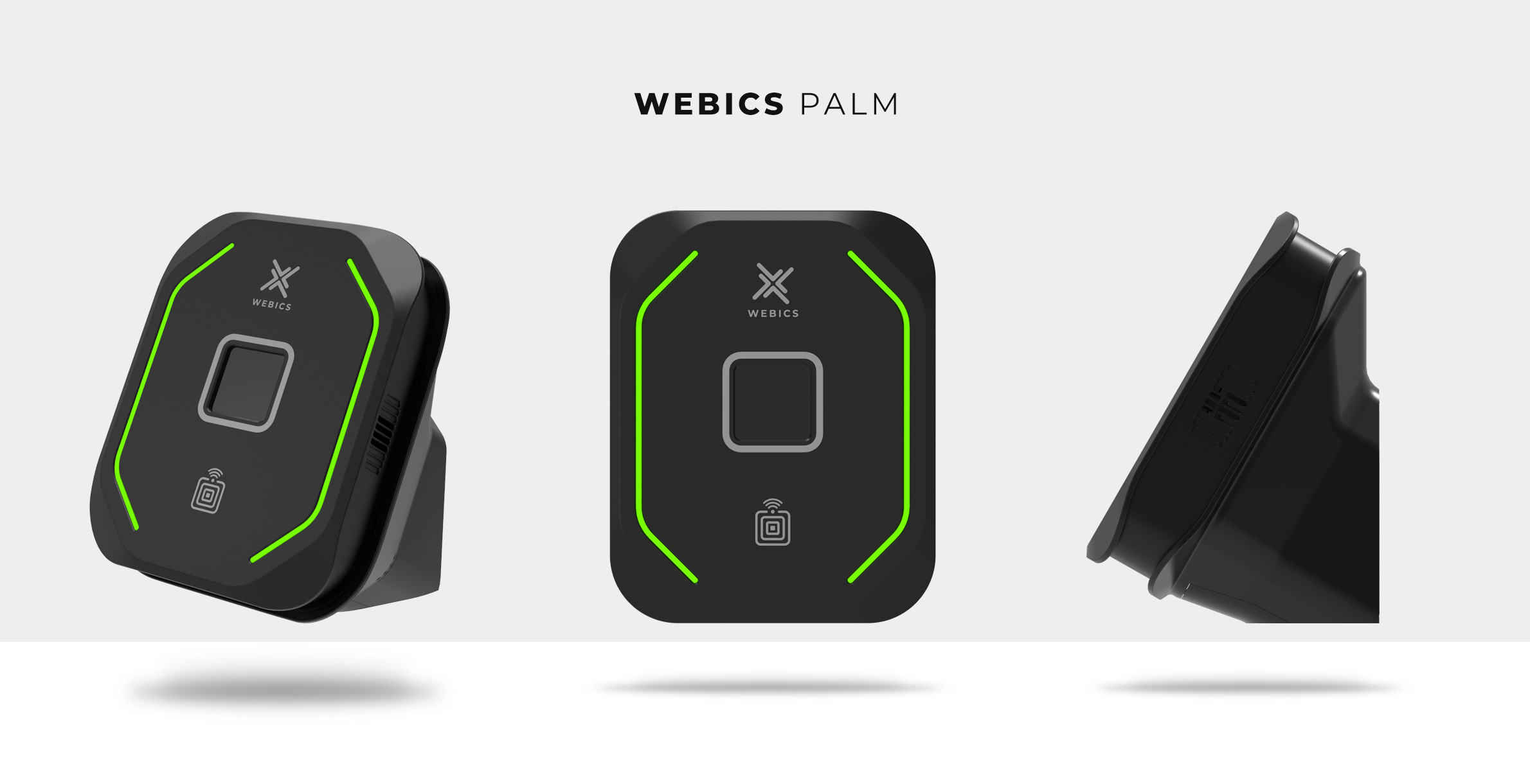

WEBICS PALM

Easy, Simple, Fast, Safe and Perfect Biometric control Device, WEBICS Palm

WEBICS Palm is an access control solution that solves the security, functionality, and user flexibility that existing biometric security systems couldn’t have solved.


Key Features

· WEBICS PALM is a perfect and safe access authentication device using palm vein recognition and RFID card recognition.
· The highest performance security system using the palm vein, the most advanced biometric technology.
· The best palm vein recognition technology is applied to the WEBICS security solution to minimize the misidentification rate, and users can easily use it through simple authentication (FAR: 1/1,000,000)

01. STAND ALONE SYSTEM

You can update registered user information in real time by connecting with WEBICS ADMIN, a central control server program. We applied STAND ALONE SYSTEM that can operate the device independently even if there is a problem with the server or the connection is cut off due to a network problem. When the server is reconnected, user log information is automatically transmitted to the server, so there is no loss of log information.

02. Prevention of cross-infection through non-contact

Unlike fingerprint or finger vein authentication, which is a contact biometric authentication method, the palm vein is authenticated in a non-contact manner. Because it is 100% non-contact method, there is no risk of cross infection even when multiple users use it, and fast recognition is possible without any problems even in wet or dry palm conditions. Non-contact biometric authentication not only eliminates the risk of cross-infection, but also uses the palm vein, which enables both children and adults to freely and conveniently use it regardless of the installed location.

03. Optimal angle search for authentication

It was designed by studying the optimal design and angle so that the user's veins can be recognized well when entering and exiting.

04. Fast authentication time

By applying HN Security's unique vein authentication algorithm, fast authentication is possible within 1 second.

05. Intuitive UI

The LED lamps located on the left and right change to different colors according to various situations such as power, authentication, rejection, registration, and security settings, which provide status and intuitive UI.

06. Basic application of RFID reader

It is applicable to all devices connected by physical card and NFC.

palm

Key Specification

Model Name WEBICS Palm Remark
CPU Cortex-A53 64-bit SoC 1.4GHz
RAM 1GB SDRAM
Color Black
Operation Mode Palm Vein and RFID
Biometric Recognitions Palm Vein
Recognition Distance 35 ~ 76mm / 1.4 ~ 3.0in
FAR/FRR of Algorithm 0.00001/0.01
Capacity 500 palms
Encryption AES 256
Built in RFID reader RFID 13.56Mhz, ISO14443A/B, NFC
Speak Out Sound effect
Dimensions 120(W) x 152(D) x 112(H) / 4.7(W) X 5.9(D) X 4.4(H) mm/in
Weight 0.6 / 1.3 kg/lb
Communications 100Mbit Ethernet, Wiegand out
Input / Output Relay, RS485, Wiegand
Event Log Capacity 100,000 events
Power 12V DC / 3A
Languages Korean, English
Operating Temperature 0 ~ 60 / 32 ~ 140 ˚C/°F
Operating Humidity 5% to 80%
Housing Materials Flame retardant ABS, Poly Carbonate, PP
Management SW WEBICS ADMIN
Mounting Default wall mounting bracket

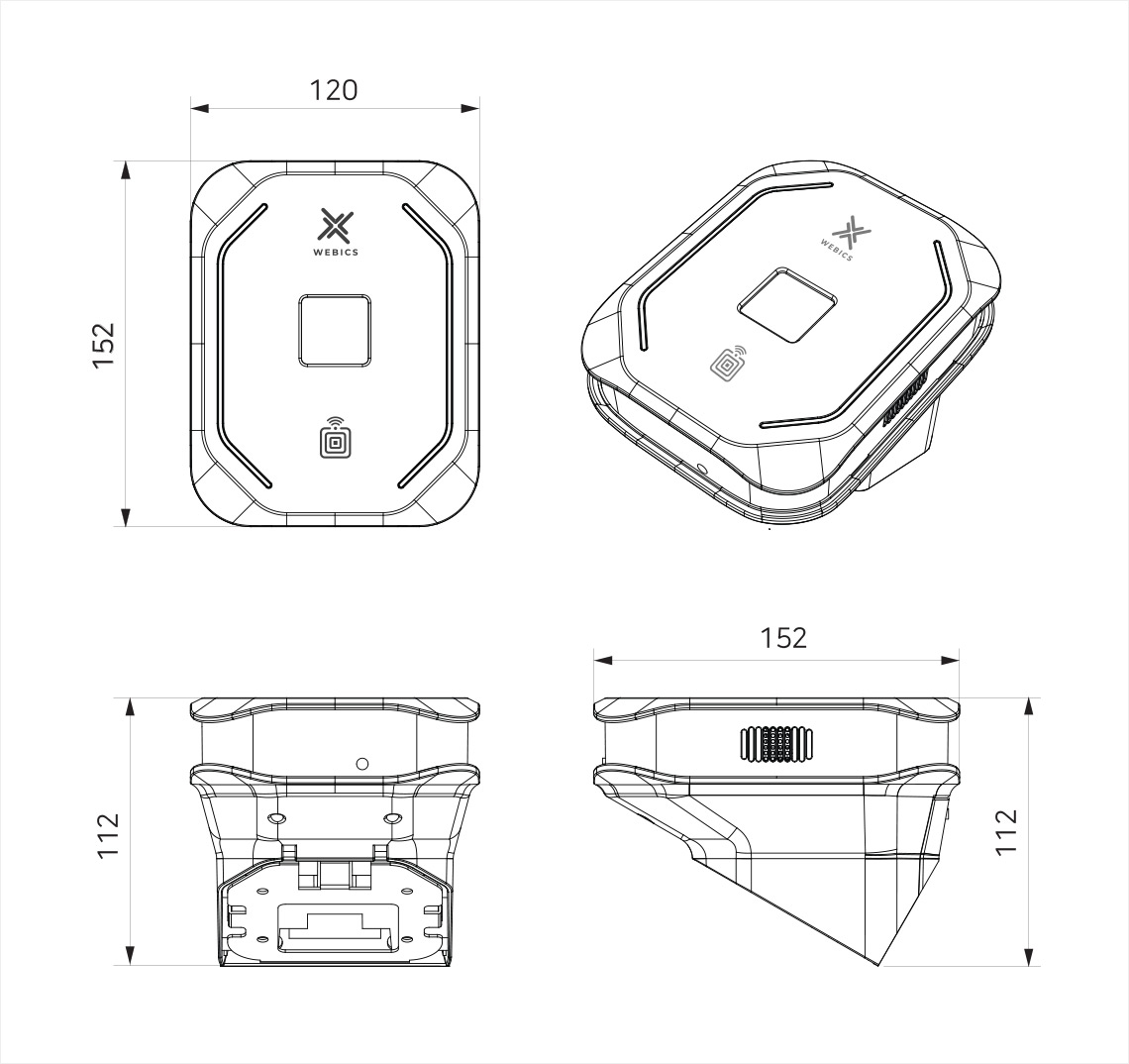

Dimensions


Applications

High-end markets that require the best performance and quality Markets that require the highest level of security
- Government institutions, financial institutions, medical institutions such as hospitals, research institutes, institutional facilities, and high-end commercial spaces

Featured Box Image

Building, Office

Featured Box Image

Hotel

Featured Box Image

Construction Site

Featured Box Image

Hospital

Featured Box Image

School

Featured Box Image

Kindergarten, Academy

Featured Box Image

Financial Institution

Featured Box Image

Nursing Hospital, Nursing Home

Featured Box Image

Knowledge Industry Center

Featured Box Image

Factory

Download

WIBICS Palm Menual V1.0

File size: 4,343KB | PDF
